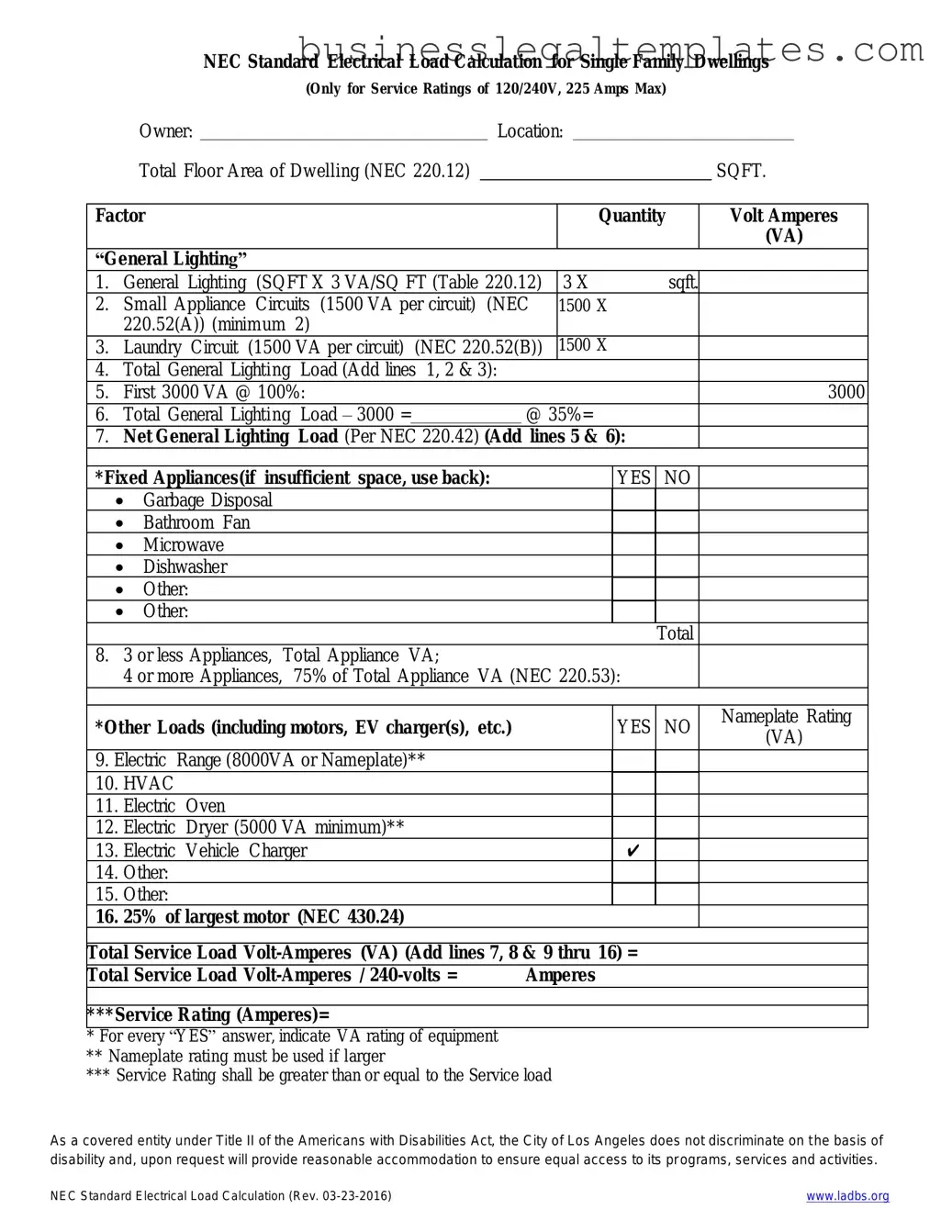

Printable LADBS NEC Standard Electrical Load Calculation Form

How to Fill Out LADBS NEC Standard Electrical Load Calculation

After deciding to undertake renovations or a new project that involves electrical work, the importance of properly calculating the electrical load cannot be overstressed. This ensures that the property's electrical system is safe, efficient, and compliant with local codes. The Los Angeles Department of Building and Safety (LADBS) NEC Standard Electrical Load Calculation form is a critical step in this process. Completing this form accurately requires a careful assessment of the electrical needs of your property, from lighting fixtures to appliances and everything in between. Here's how to go about filling out the form, step by step.

1. Begin by gathering all necessary documentation about your property's current electrical usage and any planned additions or changes. This includes the types and numbers of electrical appliances, the square footage of the property, and the intended use of different areas within the property.
2. Review the LADBS NEC Standard Electrical Load Calculation form to familiarize yourself with the various sections that need to be completed. This will give you a clear picture of the information required.
3. Enter the general property information requested at the beginning of the form. This typically includes the property address, owner's name, and project details.
4. Fill out the section on lighting load. This requires calculating the wattage used by all the lighting fixtures on the property. Use the standard calculation of watts per square foot, adjusting for the types of spaces within the property as necessary.
5. Proceed to the section on appliance load. List all significant appliances (e.g., refrigerators, ovens, washing machines) and their respective power requirements. These can usually be found on the appliance itself or in the user manual.
6. Calculate the heating and cooling load by noting the specifications of your heating, ventilation, and air conditioning (HVAC) system. This is crucial for ensuring that the system can handle the property's needs without overloading.
7. For properties with specialized equipment (such as workshops, home offices, or entertainment centers), add the electrical load of these items in the dedicated section for other loads.
8. After all sections have been completed with the required information, review the form to ensure accuracy. Verify that all calculations are correct and that no necessary information has been omitted.
9. Sign and date the form in the designated area. This may require the signature of a licensed electrician or engineer, depending on local regulations.
10. Submit the completed form to the appropriate department within LADBS, along with any other required documentation for your project. Ensure you keep a copy for your records.

Following these steps meticulously will facilitate a smoother approval process for your electrical work, contributing to the safety and efficiency of your property's electrical system. Beyond compliance, this careful planning helps in preventing future electrical issues, ensuring a more stable and reliable power supply to meet your property's needs.

Filling out the LADBS NEC Standard Electrical Load Calculation form is a critical step in ensuring the safety and effectiveness of your electrical system. However, people often make mistakes that can lead to inaccurate calculations, potential delays, and increased costs for your project. Understanding these common errors can help avoid them.

One of the first mistakes is not double-checking the form for updates or changes. The National Electrical Code (NEC) updates its standards regularly, and the Los Angeles Department of Building and Safety (LADBS) adapts its requirements accordingly. Using an outdated form can lead to miscalculations or non-compliance with current standards.

Another common error is incorrectly calculating square footage. The NEC has specific guidelines on calculating the square footage for different types of areas within a property. Overestimating or underestimating this figure can significantly impact the accuracy of the load calculation, leading to either an overdesigned system or one that cannot safely handle the actual load.

Often, individuals misinterpret the purpose and use of optional calculations. The NEC provides for standard and optional calculation methods under specific circumstances. Choosing the wrong method or misapplying the rules can result in either excessive electrical capacity or, worse, insufficient capacity to safely power the home or building.

A frequent oversight involves failing to account for all the necessary loads. Every electrical device adds to the total load, and forgetting to include items such as HVAC systems, appliances, or specialized equipment can lead to underestimation of the total electrical demand. This mistake not only affects the immediate calculation but can also have long-term safety implications.

An error often made by those less experienced with electrical codes is incorrectly applying demand factors. The NEC allows for demand factors to adjust the theoretical maximum load to a more realistic expected operational load. Misapplying these factors can significantly skew the results of the load calculation.

Overlooking local amendments or requirements is another crucial oversight. The City of Los Angeles may have amendments to the NEC that affect how load calculations are performed. Ignoring these local specifics can lead to non-compliance, project delays, and additional costs.

Finally, many fail in not seeking professional assistance when needed. The complexity of the NEC and local amendments can be daunting. Professionals, such as licensed electricians or electrical engineers, are invaluable resources in navigating these complexities. Attempting to navigate the load calculation process without the necessary expertise can lead to errors, rework, and potential safety hazards.

Avoiding these common mistakes requires diligence, attention to detail, and, when necessary, consultation with professionals. Ensuring the accuracy of your LADBS NEC Standard Electrical Load Calculation not only helps in achieving compliance but is also a critical step in safeguarding the integrity and safety of the property’s electrical system.

When dealing with electrical projects in the United States, particularly in Los Angeles, the LADBS NEC Standard Electrical Load Calculation form is a crucial document. This form helps ensure that electrical systems are designed with an adequate load capacity, adhering to the National Electrical Code (NEC). However, it is rarely the only document required. Several other forms and documents usually accompany it, each serving a unique purpose in the project's planning and approval process. Understanding these documents can make navigating the requirements much smoother.

• Electrical Permit Application: This is typically the first document submitted for any project requiring electrical work. It formally requests permission to start the project and includes basic details such as the applicant's information, project location, and description of the intended work.
• Building Permit Application: For projects that involve more than just electrical work, a Building Permit Application is necessary. It covers a broader scope, including construction, demolition, and major renovations. This form is crucial for ensuring all aspects of the project meet local building codes.
• Plan Check Correction List: After reviewing the initial application and drawings, the Department of Building and Safety might issue this list, highlighting areas that need revision or additional information to comply with the NEC and other applicable codes.
• Electrical Panel Schedule: This document provides details about the electrical panel, including the circuit numbering, amperage, and the devices served by each circuit. It is essential for ensuring the panel is appropriately sized and organized.
• Energy Efficiency Compliance Forms: Many jurisdictions require these forms to demonstrate that the electrical installations comply with local energy conservation standards. They may include calculations for lighting efficiency, HVAC systems, and other energy-consuming components.
• Fire Safety Compliance Form: In projects where the electrical system might impact fire safety, this form ensures that all installations meet the fire code requirements related to alarms, extinguishing systems, and emergency lighting.
• Owner-Builder Declaration Form: If the property owner acts as their own contractor, this form declares their understanding of the responsibilities involved, including adherence to building codes and hiring licensed subcontractors as needed.
• Notice of Completion: After finishing the project, this document is filed to inform the local building department. It triggers the final inspection process and is a critical step towards obtaining a certificate of occupancy.
• Request for Temporary Power: Often, projects require electrical power before the permanent system is approved and connected. This form requests temporary power supply, outlining the safety measures and equipment setup proposed.

Each of these documents plays a vital role in the construction or renovation process involving electrical work. From the initial application to the final approval, they ensure that every aspect of the project is reviewed, safe, and compliant with local and national codes. Understanding and correctly preparing these forms can lead to a smoother approval process and a successful project completion.

The Residential Electrical Load Calculation is quite similar to the LADBS NEC Standard Electrical Load Calculation form, as both are designed to ensure that a home's electrical system can handle the expected electrical load safely. These forms calculate the capacity needed by factoring in various household electrical appliances and systems, ensuring compliance with electrical codes to prevent overload situations which could lead to electrical fires.

Another document resembling the LADBS NEC Standard Electrical Load Calculation form is the Commercial Building Electrical Load Calculation form. This document, while focusing on commercial buildings rather than residences, also calculates expected electrical loads. It considers commercial equipment, lighting, and HVAC systems in its calculations to ensure that the electrical infrastructure of a building is capable of supporting its operational needs without risk of overload.

The Electrical Panel Load Calculation Worksheet follows a similar principle, helping electricians and engineers to determine whether an electrical panel can handle the cumulative load of a building. It assesses all circuits connected to the panel and ensures that the total load does not exceed the panel’s capacity, much like the LADBS NEC form evaluates total building load in relation to electrical supply capabilities.

The HVAC Load Calculation form, though primarily focused on heating, ventilation, and air conditioning systems, parallels the LADBS NEC form in its goal of ensuring system capacities align with building requirements. It estimates the size and capacity of HVAC units needed to effectively service a building, based on square footage, window types, and other factors that influence heating and cooling loads.

Similar in purpose to the LADBS NEC Standard Electrical Load Calculation form, the Solar Panel Load Calculation form is designed to assess the feasibility and capacity requirements for installing solar panels on a residential or commercial property. It calculates the energy consumption of the property to determine the number of solar panels needed to meet this demand, ensuring the renewable energy system is adequately sized.

The Generator Sizing Calculation form is another document that shares its objective with the LADBS NEC Standard Electrical Load Calculation form, albeit for different applications. It determines the size of a generator needed based on the electrical load of a building, ensuring that in the event of a power outage, the generator can provide sufficient backup power to meet the building's essential electrical needs.

Finally, the Energy Audit Assessment form, while broader in scope, still shares similarities with the LADBS NEC Standard Electrical Load Calculation form. It evaluates a building’s overall energy usage, including electricity, to identify opportunities for efficiency improvements and to reduce energy consumption. Part of this assessment includes calculating current electrical loads to benchmark against best practices and identify areas where electrical load management can be improved.

Filling out the LADBS (Los Angeles Department of Building and Safety) NEC (National Electrical Code) Standard Electrical Load Calculation form is an essential step in ensuring electrical safety and compliance in construction and renovation projects. This form helps in determining the electrical needs of a building, ensuring that the electrical system is neither overloaded nor underutilized. Here are eight dos and don'ts to guide you through the process:

• Do gather all necessary information about the electrical devices and systems in the building before starting the form. This includes knowing the types and numbers of fixtures, appliances, and any specialized equipment.
• Do use the most current NEC codes for reference. The National Electrical Code is updated every three years, and using outdated codes can lead to inaccuracies in calculations and potential code violations.
• Do double-check your math. Even small errors in calculation can lead to significant problems, including insufficient power supply or safety hazards.
• Do consult an electrician or electrical engineer if you are unsure about any part of the form. Their expertise can help clarify complex items and ensure accuracy in your calculations.
• Don't estimate or guess at load values. Use actual specifications and ratings from manufacturer’s data sheets or labels on the equipment.
• Don't ignore localized requirements or amendments to the NEC. The City of Los Angeles may have specific amendments or requirements that must be incorporated into your calculations.
• Don't leave sections of the form blank unless they are truly not applicable to your project. If a section doesn’t apply, clearly mark it as "N/A" to show that it was considered but not needed.
• Don't forget to review and update your calculations if the design or equipment changes. Keeping your electrical load calculations current ensures that the electrical system remains safe and compliant throughout the project.

Approaching the LADBS NEC Standard Electrical Load Calculation with care and precision will not only facilitate a smoother permitting process but also contribute to the overall safety and efficiency of the building's electrical system. Remember, when in doubt, consulting with a professional is always a wise decision.

The Los Angeles Department of Building and Safety (LADBS) NEC Standard Electrical Load Calculation form is essential for ensuring buildings are equipped with safe and sufficient electrical systems. However, misconceptions about this form can lead to confusion and errors. Let's clear up some common misunderstandings:

1. It's only for new construction. Both new construction and significant renovations often require a completed LADBS NEC Standard Electrical Load Calculation form to ensure compliance with current electrical standards.

2. Any professional can complete the form. While it doesn’t have to be an electrician, the person completing the form should have a solid understanding of electrical systems and load calculations to ensure accuracy.

3. The form accounts for all future expansions. The form calculates current needs. While it’s wise to consider future expansions, the form itself doesn’t automatically account for them unless specifically incorporated into the calculations.

4. It's a one-size-fits-all document. The form must be tailored to each specific project, taking into account its unique characteristics and requirements.

5. Completion of the form guarantees compliance. While completing the form is a step towards compliance, the entire electrical system must be installed according to the NEC and local amendments to be compliant.

6. It's only necessary for large projects. Size doesn’t exempt a project from needing a load calculation. Small projects often require this calculation to ensure the electrical system matches the building's demands.

7. The form is too technical and doesn't require input from architects or designers. Architects and designers play a crucial role in providing information necessary for accurate calculations, especially regarding the purpose and layout of spaces.

8. It's a one-time requirement. Any significant change to the electrical load, such as adding equipment or reconfiguring spaces, may require a reevaluation and submission of a new form.

9. Utility costs are included in the calculation. The form calculates electrical loads, not costs. Utility costs are determined by the local power company and are based on the electrical consumption, not load capacity.

10. All electrical devices need to be individually listed on the form. The form requires aggregate load calculations. Detailed lists of individual devices are generally not necessary unless they significantly impact the overall electrical load.

Understanding the purpose and requirements of the LADBS NEC Standard Electrical Load Calculation form is vital for anyone involved in constructing or renovating buildings in Los Angeles. Dispelling these common misconceptions can help streamline the process, ensuring projects progress smoothly and safely.

The Los Angeles Department of Building and Safety (LADBS) NEC Standard Electrical Load Calculation form is a critical document used in the planning and execution of electrical installations in buildings within the jurisdiction of Los Angeles. Here are key takeaways to help understand and utilize this form effectively:

• The form ensures compliance with the National Electrical Code (NEC), aiming to safeguard persons and property from hazards arising from the use of electricity.
• Before filling out the form, gather all necessary data about the electrical loads in the building, including lighting, appliances, and equipment.
• Accuracy is paramount. Estimations should be based on actual equipment specifications rather than guesses to prevent electrical system over or under-sizing.
• The form is divided into sections corresponding to different types of electrical loads (e.g., general, heating, cooling) to help systematically calculate the total electrical demand.
• Remember to include both continuous and non-continuous loads. Continuous loads operate for three hours or more, and calculating them accurately is crucial for the system's design.
• Use the demand factors provided in the NEC to adjust the total load. These factors help in determining a more realistic load by considering the unlikely case of all equipment operating simultaneously.
• After calculating the total load, the next step is to determine the size of the service equipment required. This ensures the electrical system can handle the calculated load safely.
• When completed, the form provides a clear overview of the building’s electrical demand, serving as a valuable tool for both the electrician and the building inspector.
• If amendments to the building’s electrical load occur (e.g., due to renovations or extensions), the form should be updated to reflect these changes.
• Digital tools and software can assist in filling out the form accurately, but a thorough understanding of the NEC codes and the specific requirements of the LADBS is indispensable.

In conclusion, the LADBS NEC Standard Electrical Load Calculation form is more than just a bureaucratic step; it is an essential part of planning safe and efficient electrical installations. Taking the time to understand and accurately fill out this form can prevent costly and dangerous errors in electrical system design.
